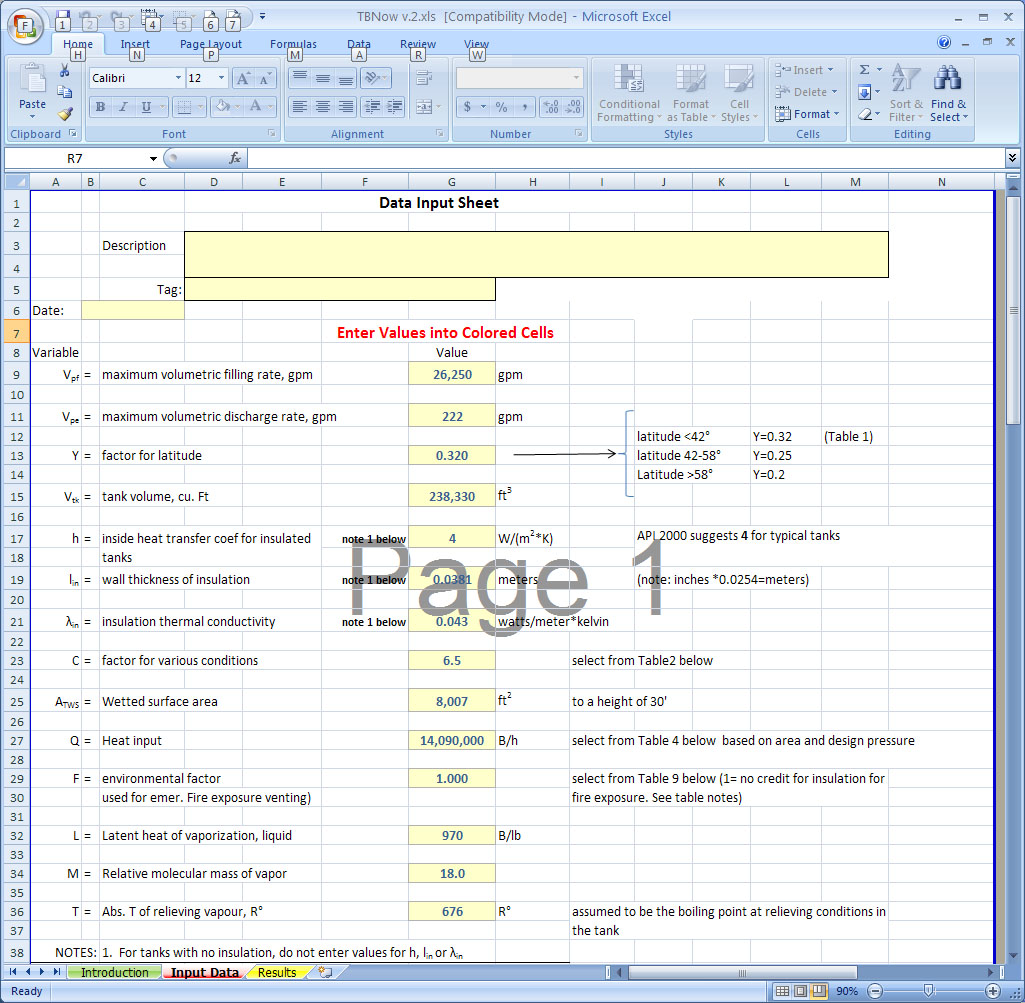

Above is a screenshot of the data entry page. The sheet is laid out in an easy to use format. The cells that require data have been colored yellow for easy identification. Units are listed to eliminate confusion.
After entering the data, the necessary information has automatically been transfered to the Results page (below), along with the calculated values of the pertinent variables.

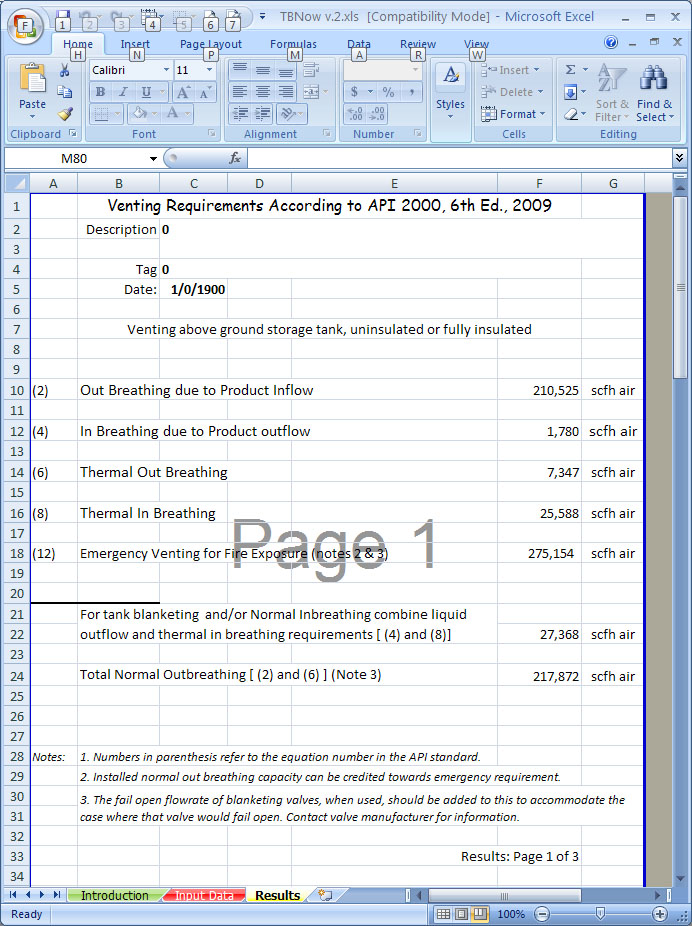

The program includes a printout of a blanketing/venting data sheet, and system drawings. Above is a partial screen shot of the Results page.
The program calculates tank blanketing systems and venting for unrefrigerated, above ground storage tanks:
*Inbreathing, including blanket gas requirements
*Outbreathing
*Emergency Venting for Fire Exposure
*Considerations for uninsulated or fully insulated tanks
*Sample installation drawings
*The entire Results, including inputs, calulated variables, explanations and drawings can now be printed.
This program calculates based on API2000 2009 6th Edition, which is identical to ISO 28300:2008 and knowledge of either of these standards is necessary.
